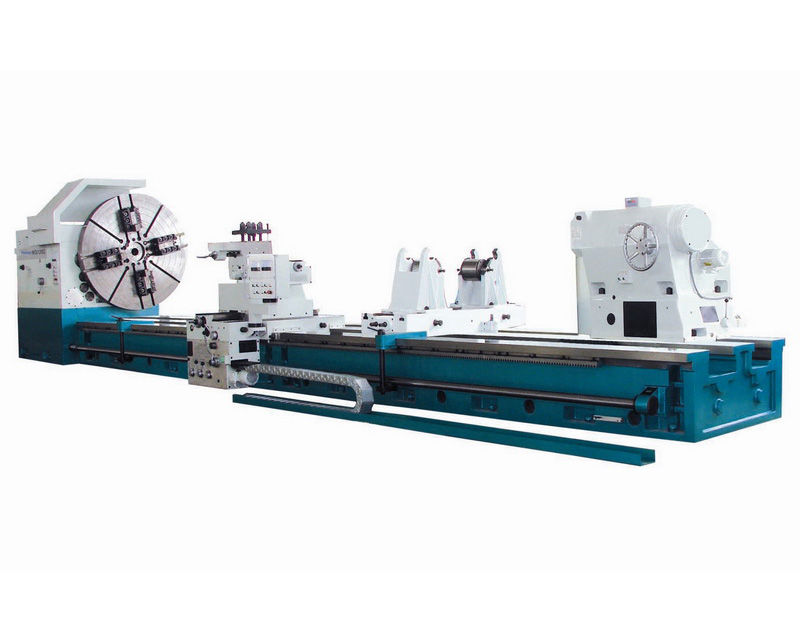

△1600mm width of bed
△Harden and ground guides
△Three-step spindle hydraulic gear shift, infinitely adjustable-speed
△Forced
● Tail stock fast moving
● 600mm thread cutting (Full length thread cutting upon special order)
※Close-type Steady rest
※Face chuck
※Main spindle center
※Tailstock center
※Adjusting bolt of shim plate
※Wrenches
※Change Gears
※Open-type Steady rest|
Specification |
Unit |
CH160TG |
CH180TG |
CH200TG |
CH220TG |
CH240TG |
CH250TG |
|
CAPACITY |
|||||||
|
Max. swing over bed |
mm |
1600 |
1800 |
2000 |
2200 |
2400 |
2500 |
|
Max. swing over cross slide |
mm |
1250 |
1450 |
1650 |
1850 |
2050 |
2150 |
|
Center distance |
m |
3 /4 /5 /6 /8 /10 /12 /16 |
|||||
|
Max. weight of workpiece |
t |
32 |
|||||
|
Width of bed |
mm |
1600 |
|||||
|
HEADSTOCK |
|||||||
|
Spindle hole |
mm |
85 |
|||||
|
Spindle taper |
mm |
Ø120 Taper1:7 |
|||||
|
Spindle speeds |
rpm |
0.86-160/3- files hydraulic mechanical speed |
|||||
|
GEAR BOX-TREADS&FEEDS |
|||||||
|
Metric threads range（pitch） |
mm |
2-40 |
|||||
|
Inch threads range |
inch |
1-14 |
|||||
|
Worm gear threads range（module） |
mm |
1.5-20 |
|||||
|
Longitudinal feeds range |
mm |
0.125-4.8 /spindle each turn |
|||||
|
Cross feeds range |
mm |
0.063-2.4 / spindle each turn |
|||||
|
Rapid feed：long/cross |
mm/min |
3000/1500 |
|||||
|
TOOL-POST |
|||||||
|
Tool section |
mm |
70*70 |
|||||
|
CARRIAGE |
|||||||
|
Cross slide travel |
mm |
725 |
|||||
|
Middle slide travel |
mm |
600 |
|||||
|
TAILSTOCK |
|||||||
|
Sleeve diameter |
mm |
300 |
|||||
|
Sleeve taper |
|
Ø100 taper1:7 |
|||||
|
Sleeve travel |
mm |
300 |
|||||
|
STEADY REST |
|||||||
|
Close-type steady rest |
mm |
Ø400-750 |
|||||
|
Open-type steady rest |
mm |
Ø650-1200 |
|||||
|
MOTOR |
|||||||
|
Main motor |
kW |
80（DC） |
|||||
|
Rapid feed motor |
kW |
1.5 |
|||||
|
Tailstock motor |
kW |
1.5 |
|||||
